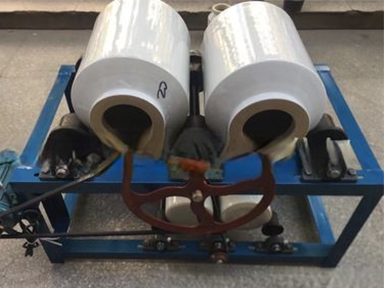

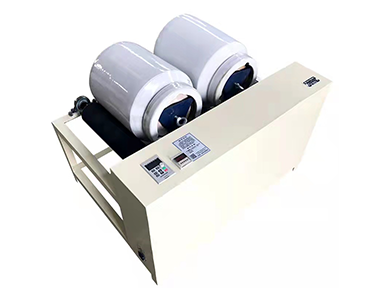

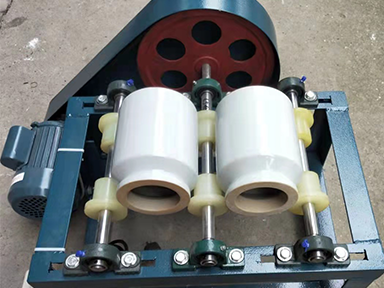

Ball Grinding Mill

1. Working principle
The ball mill is composed of a rotatable horizontal cylinder and internal steel balls and other grinding media. When the horizontal ball mill is running, the ball in the cylinder is lifted to a certain height under the action of friction and centrifugal force, and then slips, rolls or falls down. The sphere and the sphere, the sphere and the cylinder wall frequently interact with each other. Impact and mutual friction make the pigment agglomerates subject to impact, squeeze and strong shearing. At the same time, the paint paste between the balls is in a highly turbulent state, so that the pigment agglomerates are gradually dispersed into the paint.

2. Advantages of horizontal ball mill:
①There is no need for pre-mixing operations, and various raw materials such as paints and pigments can be directly put into the ball mill.
②Basically, there is no volatilization loss and pollution. Because the ball mill is completely closed operation, the volatilization loss is limited only during feeding and discharging, and the pollution to the environment is small. At the same time, the product will not be polluted by external dust and moisture. Therefore, the ball mill is especially suitable for the dispersion of toxic paint paste and high volatile paint paste. For example, it is often used in the production of marine paint.
③Easy and safe to operate, so the process does not require a lot of care, saving manpower.
④The equipment structure is simple and the maintenance cost is low.
⑤Strong adaptability. It can disperse the lacquer prepared by various pigments, soft or hard, coarse or fine, and the lacquer with false thick phenomenon.
⑥In the dispersion process, metal fines can be prevented from polluting. The product adopts a steel wall stone-lined horizontal ball mill and uses ceramic balls or pebbles. The product does not contact with the metal, so as to prevent the metal fines from affecting the product performance. This feature makes the horizontal ball mill suitable for manufacturing insulating paint.

3. Product Parameter
rotate speed  350r/min
rate of work   0.75kw
Size   1160x940x460mm
Weight  260kg
