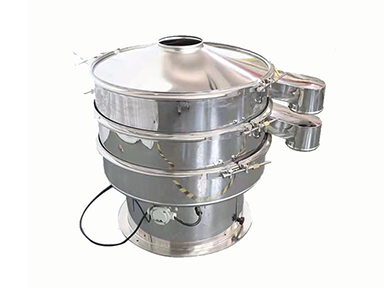

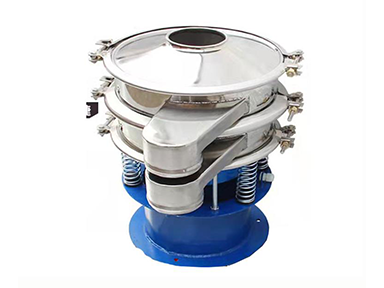

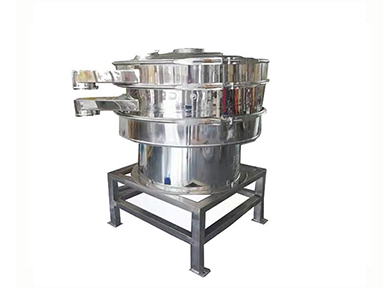

Vibrating Sieve Shaker

1. Product describe
It is a high-precision fine powder sieving machine with low noise and high efficiency. It only takes 3-5 minutes to change the mesh quickly. It has a fully enclosed structure and is suitable for sieving and filtering granular, powder, liquid and other materials.

2.Work principle
The vibrating sieve shaker uses a vertical motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric weights to convert the rotating motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transfer this motion to sieve surface. Adjusting the phase angle of the upper and lower ends can change the movement trajectory of the material on the sieve surface.

3. Applicable industry
Food industry: sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
Pharmaceutical industry: industrial medicines, Chinese medicine powder, granular pills, pellets, etc.
Chemical industry: resins, coatings, industrial medicines, cosmetics, paints, etc.
Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, heavy carbonic acid Calcium, quartz sand, etc.
Other industries: waste oil, wastewater, dyeing and finishing wastewater, early knowledge, additives, activated carbon, etc.

4. Features:
a. Small size, saving space, the number of layers of machinery and equipment is controlled by itself, up to five layers, and different particle size specifications can be screened out
b. Can be sieved powder, mucus, granules, sieve to 0.028mm or 500 mesh. High efficiency, simple operation, convenient cleaning, equipment can work continuously
c. The screen change is quick and convenient, it takes 3-5 minutes, it takes less time, the mesh is not easy to be blocked, the powder will not fly everywhere, and the impurities and coarse materials can be sieved and discharged.



型号	A	B	C	D	E	F	H	I	vibration motor（kw）	Regular Motor（kw）
S49-600	530	430	246	600	100	70	391	415	0.25	0.75
S49-800	680	580	246	800	125	80	514	430	0.55	1.1
S49-1000	800	700	246	1000	150	95	615	430	1.1	1.5
S49-1200	975	855	400	1200	180	100	717	550	1.1	1.5
S49-1500	1190	1050	400	1500	180	116	866	545	1.5	2.2
S49-1800	1580	1440	400	1800	200	150	1070	675	3	3
S49-2000	1800	1640	400	2000	200	190	1210	685	3	3
